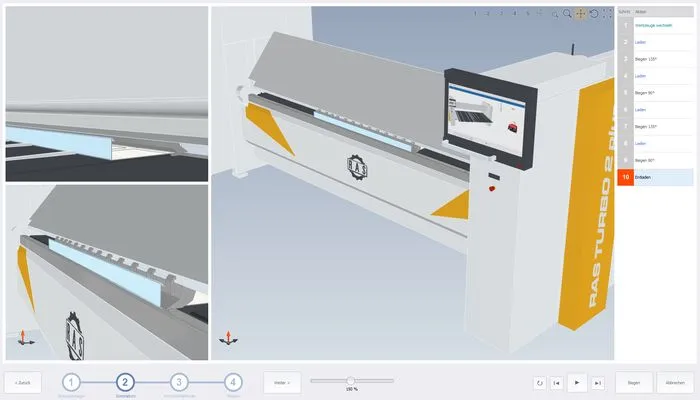

RAS TURBO2 PLUS SOFTWARE

Version 3.2.4.36285
Manual engagement in the bending program made possible
Programs with manual engagement are marked with a blue triangle
On four-sided parts, sharp tools can soft clamp on the side hems
Improved bending strategy for hems inside a profile
Upper beam opening varies depending on the stop position
Upper beam also opens for parts when center of gravity is outside the machine
New upper beam tools implemented
New gauging system configuration implemented
Upper beam tool setup remains after changing material thickness

Version 3.2.3.35341
Generation of programs for profiles with side hems that are bent with the sharp tool.
Additional strategies when bending hems: Long flange protrudes from the machine when pre-bending the hem. Clamping on the short flange .
Radius step bending:
      Material tables optimized for entering the springback correction
      Criteria for interpolation of the springback correction optimized
Radius bending with the radius tool:
      Software takes into account that the bending radius widens after bending
Simulated and bent parts are marked in the strategy selection
Programming can be stopped with “Cancel”. Programs that have already been generated are shown.
Radius tools implemented
New upper beam tools implemented
In the “Manage tools” menu:
      Sorting the tools according to several criteria
      Segmented folding beam tools implemented
Improved view color of the part base when importing step files
Color marking of the selected flange in the correction menu
Strategies without stars are no longer shown

Version 3.2.0.33089
Clamping on hems possible with automatic calculation of upper beam clamping dimension
Opening heights of the upper beam optimized for shorter bending times
Calculation of bending strategies for parts with hems inside the part
Optimized upper beam upstroke after hemming
New gauging system configuration implemented
Squaring arm can be selected in loading options
Smallest stop dimension reduced from 6 mm to 5 mm

Version 3.1.7.31782
Clamping on hems possible with automatic calculation of upper beam clamping dimension
Opening heights of the upper beam optimized for shorter bending times
Calculation of bending strategies for parts with hems inside the part
Optimized upper beam upstroke after hemming
New gauging system configuration implemented
Squaring arm can be selected in loading options
Smallest stop dimension reduced from 6 mm to 5 mm

Version 3.1.7.31597
New upper beam tools implemented
Upper beam opens at the end of a program (without considering the part’s center of gravity)
Software considers a shift of the bend line when using radius tools

Version 3.1.6.30564
New bending strategies for profiles implemented
Upper beam opening heights optimized
Foot switch acknowledgments reduced
Strategy selection for parts with “flips” improved
Strategy selection for profiles with Z-bends improved
Factor adjusted for blank calculation
Material-specific blank calculation implemented
Stop fingers remain in position control
Min. stop dimension changed to 6 mm
When flipping the part, the stop fingers remain in up position
Part input extended by table input
Number of shown table lines extended
Input dialog for table input improved
Sheet thickness for US market adjusted to “gauge”
For new parts without material specification “steel” is set
New upper beam tools implemented
New folding beam tools implemented
New stop configurations for 2.5 m and 3 m machine models

Version 3.1.05.29368
New upper beam tools implemented
New folding beam tools implemented
New bending strategies for profiles implemented
Input of negative angles in the dialog is no longer possible
New gauging system configurations implemented
Calculation blank dimension for different materials implemented (when importing STEP files the inside bend radius will be set to 1x sheet thickness)
Field for radius input hidden
Scale on the beams is shown in the simulation

Version 3.1.4.28164
New upper beam tools implemented
Closing of hems improved
Swedish and danish language implemented
Gauging system with brushed implemented
Machine configuration menu extended

Version 3.1.3.27878
New upper beam and radius tools implemented
T-shape gauging system implemented
Minimum sheet thickness set to 0.5 mm
No folding beam adjustment within a program. At the beginning of the program the maximum required folding beam position is set.
Texte bei Biegen von Umschlägen im manuellen Modus angepasst
Texts adapted when bending hems in manual mode
Dutch language
Office version: Machine configuration menu implemented

Version 3.1.2.27441
Editor for customized bending sequence implemented
Hemming in the editor with separate two steps: pre-bending – closing the hem
Hemming position adapted to tools
New step bending interface for radii bending incl. correction tables
Speed Optimizer: Opening the upper beam after the folding beam is <90° and the part’s center of gravity is inside the machine
When creating a part: visible side outside
Bending angle shown positive/negative according to the bending direction
Configuration “sheet thickness unlimited” implemented (example: bending of plastic material)
New upper beam tools implemented
Machine models adapted to modified machine design
TURBO2plus RAS 62.25-2 implemented
Improved part representation in the simulation
Adjusted columns in the part selection

Version 3.1.0.25172
Standard material thickness set to 0.5 mm
Profileditor for the input of part profiles
Upper beam tool 40V implemented
Folding beam CrownTool implementiert
Indication of folding beam adjustment
Material tables added (without negative angles)
Gauging at obtuse angles
Stop finger support while closing hems
