RAS PROFILECENTER SOFTWARE
Have one to sell?
ConditionNew
New

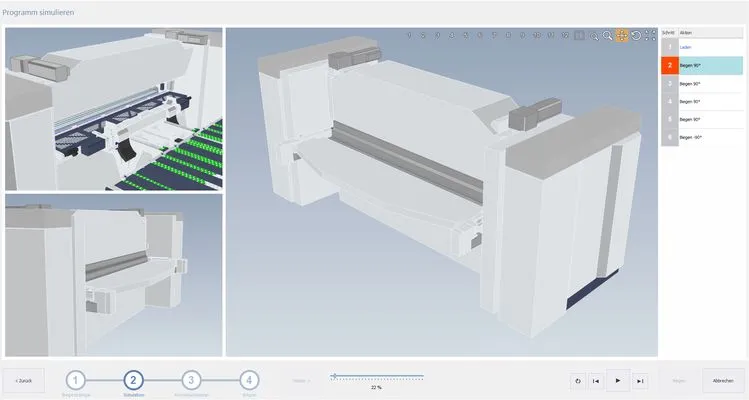

The ProfileCenter Software has been created specifically for the ProfileCenter.
Version 3.0.11.22223
Step operation improved
Bending strategies extended
Version 3.0.10.21657
Polish language integrated
Modification of the depth of a seam
Modification of the width of a seam
Step bending
New tool shapes implemented
Min. length of 600 mm can be entered
Different free move limits implemented (MaY)
Additional bending strategies
Input of a bend radius for individual flanges
New interface implemented
Additional correction options of a seam
Additional correction options for straightening a seam
Version 3.0.3.18455
Hole editor added to the input area
New upper beam tool set implemented
New lower beam tool set implemented
New option implemented so that thin and narrow sheets do not sag
Positioning system: Suction cup calculation for blanks with holes improved
Parts larger than the maximum dimensions of the machine
(L=3200 mm, B=700 mm) will not be loaded any more
Formings in the part are recognized and illustrated.
The axis movements consider the formings
Czech language integrated
Vertical position of loading table available as parameter
Stopper pairs increased from 3 to 4. Each pair can be individually controlled.
Parameters for the pressure control of the squaring pushers
Automatic adjustment of the bend radius depending on the thickness (1xs)
Import of a STEP file (alternatives: DXF, GEO) with the part model.
The software analyzes the STEP file and automatically generates a 3D model. For DXF files, the programmer has to add to the bend angle.
Springback compensation angles are listed in material tables.
