RAS XL-CENTER SOFTWARE

Version 3.1.1.25702
Screen design standardized
Processes for bending radii improved
Machine data can be retrieved via web server (Industry 4.0)

Version 3.0.13.24042
Improved input of bend radii for new parts
Settings in the user levels adjusted
Incorrect behavior of the scroll bar fixed

Version 3.0.11.22395
Hungarian language integrated

Version 3.0.10.21657
CutModule implemented on the right (only for 6m machine)
Finnish language integrated

Version 3.0.9.21170
Configuration for the CutModule on the right side of the machine
French language integrated

Version 3.0.8.20657
Bulgarian language implemented

Version 3.0.6.19811
CutModule integrated as a selectable option
MDM – Machine Data Monitoring integrated

Version 3.0.4.19268
New user interface

Version 2.4.0.16212
Upper beam clamping dimension can be manually set: Clamping on sensitive materials
The upper beam clamping dimension will be automatically limited depending on the bend angle

Version 2.3.6.15190
Language: Turkish

Version 2.3.4.14908
Strategy ranking on hems: In reality the results on negative hems are better, if they will be closed below the upper beam than using the “teardrop” function. This is taken into account in the ranking.

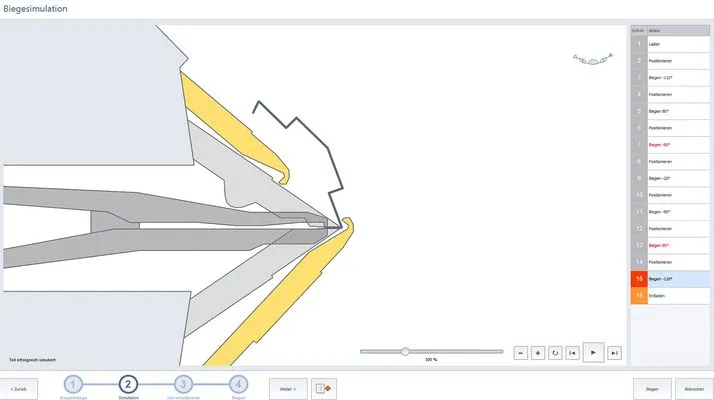

In the software installation routine the 2D simulation will be selected. You can change to a 3D view.

Version 2.3.4.14850
Folding sequences optimized in machine software for wide blanks (eg corrugated parts): Folding speed is automatically reduced as soon as the sheet comes out of the machine by more than an adjustable parameter.

Version 2.3.2.14006
Hemming option “Press 2x”: Better results as the hem will be first closed below the upper beam and a second time as a teardrop hem.
English language extended

Version 2.3.0.13459
Hemming both sides of a blank on parts wider than 750mm
Additional column “Additional manual steps” in the folding stragtegies menu
Service menue more clearly designed
Languages: Netherlands, French, Swedish
If the loading and storing takes unusually long, an hour glass is displayed (eg network problems)

Version 2.2.2.12891
Optional QR-Code Scanner:
    – without Bendex3D Shop: Program seach on machine control
    – without Bendex3D Shop: Program seach on sServer
All messages in one status window: RED = fault, YELLOW = warning, BLUE = note
Actual footswitch function shown in step mode

Version 2.1.5.11460
DLL modifications: Error messages at start eliminated
Program structure modified

Version 2.1.2.10011
HTTP inferface for communication office to machine: automatic parameter transfer from machine
Backup function of programs stored on machine control (max. 30)
Loading material tables from machine with confirmation dialog
Aufgabenlisten mit Profilvergleich
Step bending extended: Step angle adjustable for each radius
Languages: Italian and Croatian
Grab over a profile: Function of big grippers extended
Manuelles Wenden, wenn Blechzuschnitte die das max. Einlegemaß überschreiten
Bei reduzierten Biegewangengeschwindigkeit wird der Rückweg dennoch mit 100% gefahren
Touchbereich speziell bei den Schiebereglern verbessert

Version 2.0.9.8594
Finnish language
The profile editor shows the individual steps of a radius
Free move on bends > 85 degrees to prevent collision between upper beam and part

Version 2.0.8.8163
Inch dimensions availble in material tables
HTTP interface
On screen keyboard layout for languages: Czech, Italian, Portugese, Romanian, Slovenian

Version 2.0.6.7592
Higher speeds by optimized movements
Web Interface: Shows production status (optional)
Improved foldding strategies (strategies consider manual bends)
Hems can be manually pre-bent and closed
Kit production integrated in the job list
