RAS UPDOWNBEND 78.40
Have one to sell?
ConditionNew
New

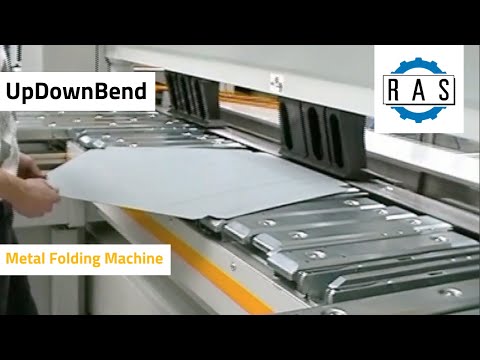

When the need arises to fold complex parts, the folding direction can change several times. The UpDownBend folding system can achieve this task without the need to flip the part. The revolutionary and flexible system allows to increase productivity and throughput significantly.
UpDownBend (mm) 78.40
Working length 4060 mm
Material thickness max (400 N/mm²) 3 mm
Upper beam upstroke 600 mm
Box height max (four-sided) 300 mm
Machine dimensions
(Rectangular gauging system) 5550 x 2990 mm
Machine dimensions (J gauging system) 5550 x 5515 mm
UpDownBend (inch) 78.40
Working length 160″
Material thickness max (58,000 PSI) 11 ga
Upper beam upstroke 23.6″
Box height max (four-sided) 11.8″
Machine dimensions
(Rectangular gauging system) 218″ x 118″
Machine dimensions (J gauging system) 218″ x 217″
Positive and negative bending without flipping the part
Mid range blank thicknesses
Semi automated material handling
Bending parts with angular footprint
Optimum solution for mid range budgets
