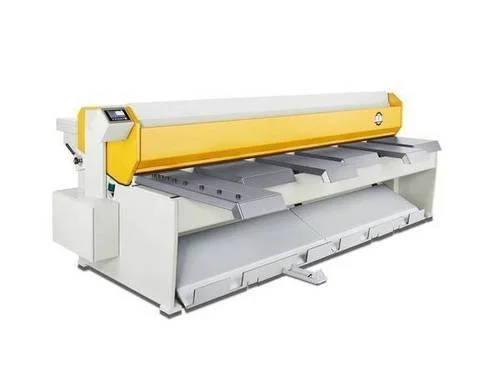

RAS PRIMECUT
Have one to sell?
ConditionNew
New
The RAS PRIMEcut uses innovative swing beam technology instead of the traditional guillotine concept. The quick blade clearance adjustment guarantees clean and square cuts. The upper blade penetrates the material above the lower blade and delivers right-angled and burr-free parts. The tilting motion of the swing beam eliminates parts getting stuck between the lower blade and the backgauge. The extremely low rake angle of less than 1.0 degrees assures twist free cuts even at about 15 x material thickness! Special blades are ideal for mild steel as well as stainless steel applications.
PRIMEcut (mm)
Cutting length max 3100 mm
Material thickness max (400 N/mm²) 3.0 mm
Backgauge 5-750 mm
Sheet support yes
Part sorting yes
Blade clearance adjustment yes
Strokes/min 28
Blade angle 1.1°
Cutting technology Swing beam
Machine dimensions
(incl. table extension) 3920 x 2370 mm
PRIMEcut (inch)
Cutting length max 122″
Material thickness max (58,000 PSI) 11 ga
Backgauge 0.2″-29.5″
Sheet support yes
Part sorting yes
Blade clearance adjustment yes
Strokes/min 28
Blade angle 1.1°
Cutting technology Swing beam
Machine dimensions
(incl. table extension) 155″ x 93″
Swing beam cutting for accurate dimensions and straight cuts
Low rake angle for twist-free cuts
Long cutting blade lifetime
Sorting cut pieces during cutting (to the front or the rear)
Sheet support and sorting system reduces staffing needs
