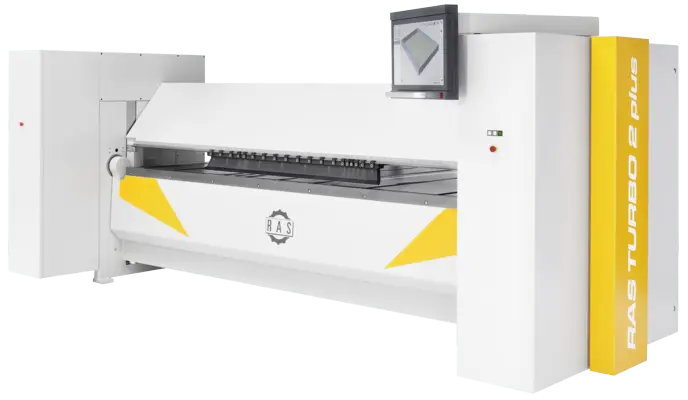

RAS TURBO2 PLUS 62.25-2
Have one to sell?
ConditionNew
New
With the TURBO2plus, bending of roof and façade profiles, as well as advertising signs or panels has arrived at a next level. The Bendex software automatically programs the parts, evaluates alternative bending strategies, and shows the bending sequence on the monitor in 3D. Expertise translated into software!
TURBO2plus (mm)
Working length 2540 mm
Material thickness max (400 N/mm²) 2.5 mm
Upper beam upstroke max 280 mm
Gauging system (rectangular) 6-1550 mm
Gauging system (T-shape) 6-3050 mm
Auto material thickness adjustment yes
Auto tool height recognition yes
Programming automatic
Machine dimensions (rectangular) 3650 x 2600 mm
Machine dimensions (T-shape) 3650 x 4000 mm
TURBO2plus (inch)
Working length 100″
Material thickness max (400 N/mm²) 13 ga
Upper beam upstroke 11″
Gauging system (rectangular) 0.236″-61″
Gauging system (T-shape) 0.236″-120″
Auto material thickness adjustment yes
Auto tool height recognition yes
Programming automatic
Machine dimensions (rectangular) 144″ x 103″
Machine dimensions (T-shape) 144″ x 158″
Versatile bending of cassettes, boxes, panels and profiles
Typical applications: roof and wall, ducting, signs, industrial applications
Automatic part programming
Operation from the folding beam side (smaller parts and profiles)
Operation from gauging side (panels)
Low costs per part (1-man operation, low investment)
Easy operation (short training period)
Improved bend results
Bending up
Tool heights up to 127 mm
Automatic recognition of a tool change
Automatic recognition of the tool height
Air conditioned control cabinet
